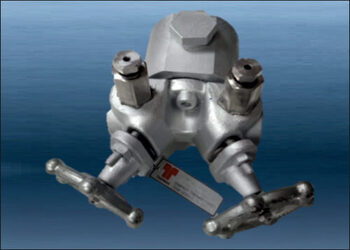

Compact TD Trap Module – Integrated Thermodynamic Steam Trap Solution

The Compact Thermodynamic Steam Trap Module is a ready-to-install, pre-engineered solution that integrates a thermodynamic steam trap, valve station, and inbuilt strainer into a compact assembly. Designed for condensate drainage in steam lines and headers, it replaces traditional bulky setups and is ideal for use in the process industry and refineries.
Key Features of Compact TD Trap Module
- Compact Design: Replaces traditional trap assemblies with a space-saving integrated module.
- Built-in Online Testing Facility: Test valves allow real-time checking of the trap’s open/close condition.
- Durable Components: Replaceable stainless steel seat with hardened disc ensures long life and easy maintenance.
- Integrated Strainer: Prevents entry of foreign particles, protecting the trap from internal damage.
- Pre-Assembled & Ready to Install: Reduces installation time and fabrication costs.
Applications
- Process Industries
- Oil & Gas Refineries
- Chemical & Petrochemical Plants
- Boiler Steam Headers
- Steam Distribution Networks
Benefits
- Fast installation with no on-site fabrication required
- Improved safety and performance with online trap testing
- Lower maintenance costs due to replaceable internal parts
- Compact footprint ideal for space-restricted areas
- Enhanced reliability with built-in strainer and premium materials
